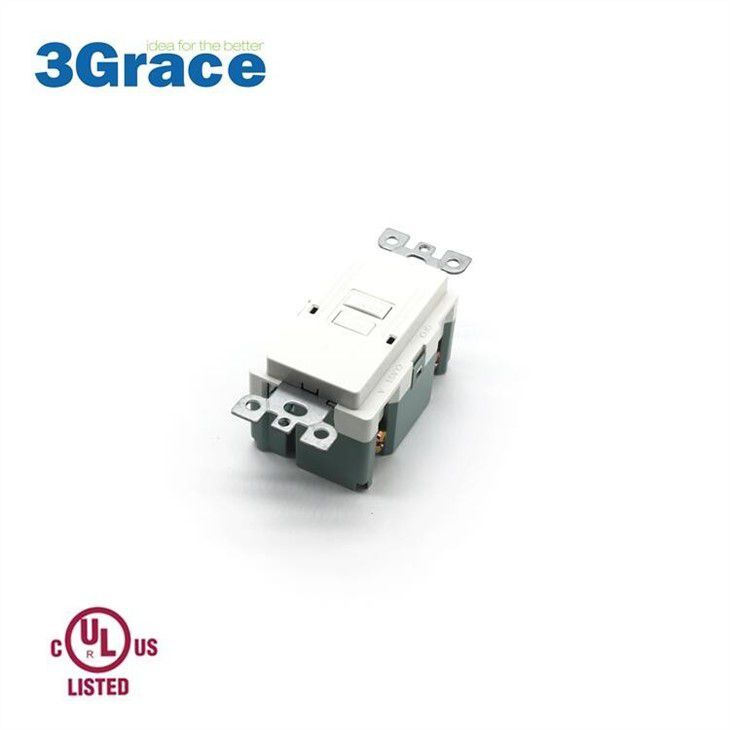

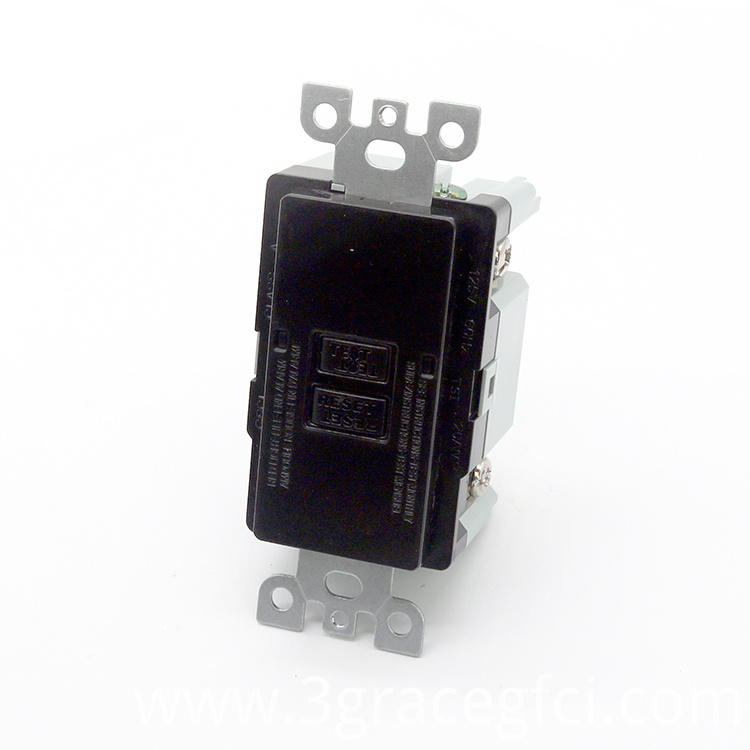

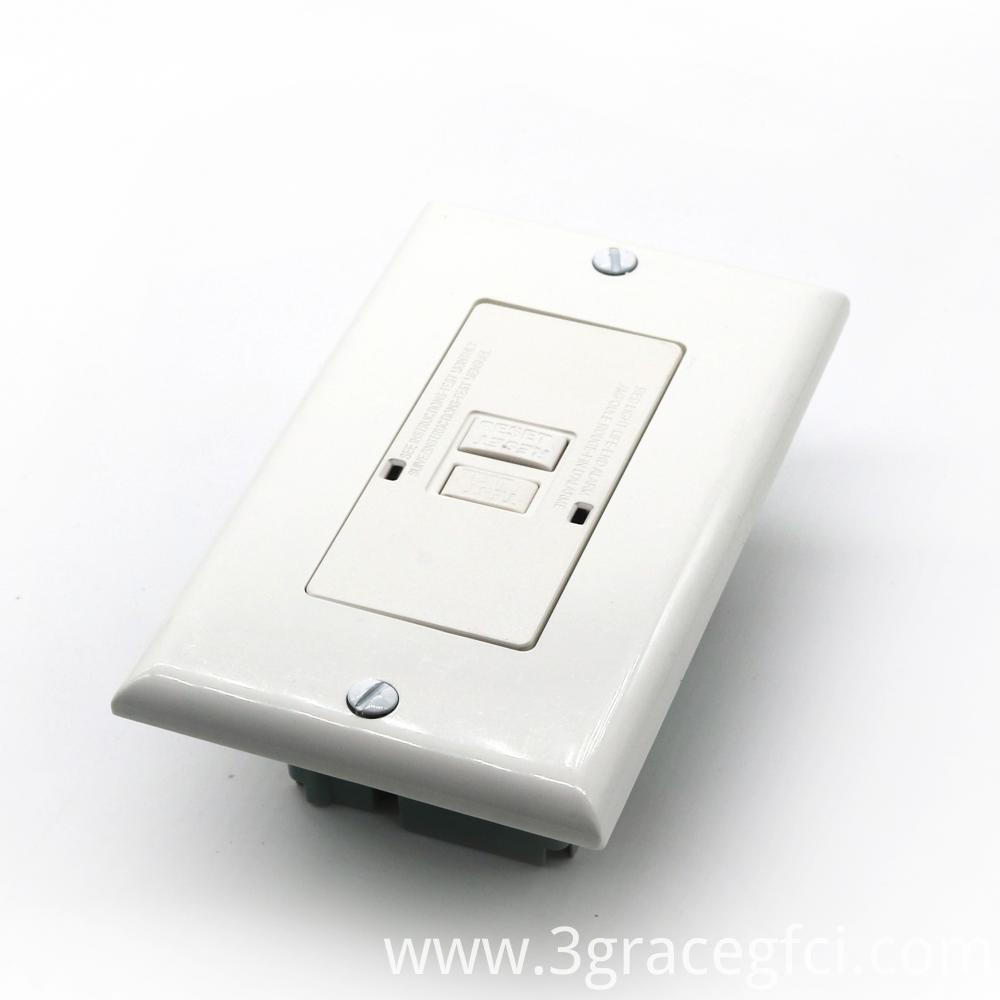

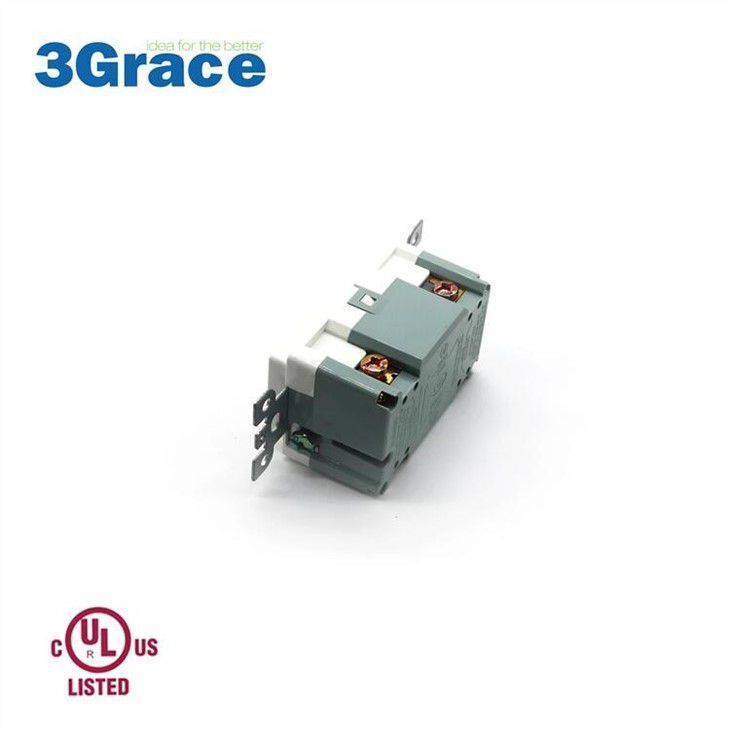

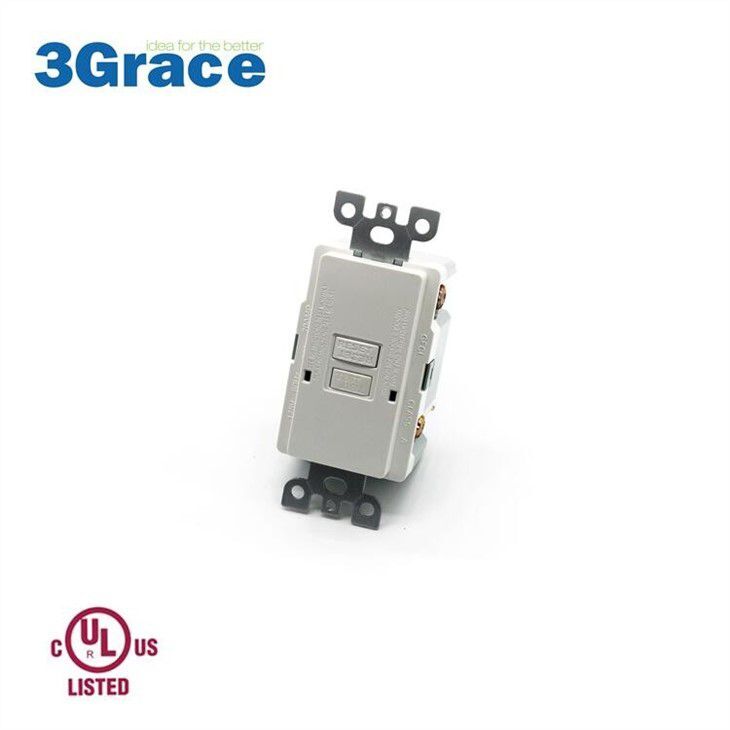

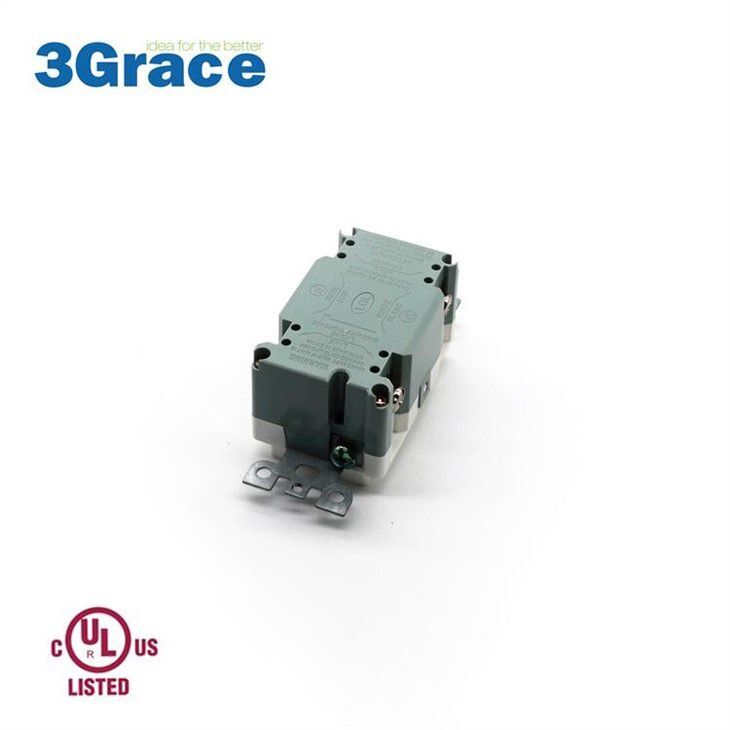

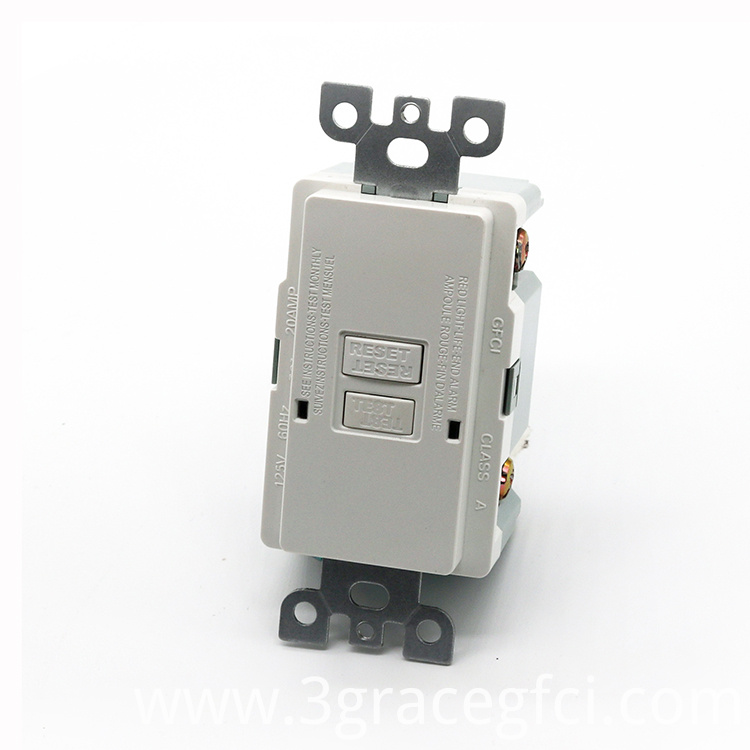

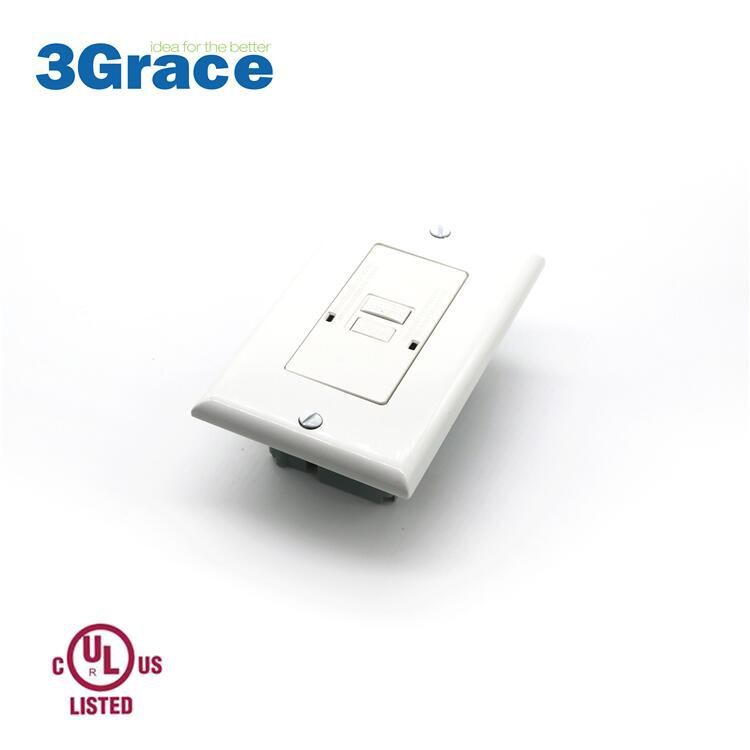

Self Test Faceless GFCI Receptacle
Get Latest Price| Payment Type: | T/T,Paypal,D/A,Money Gram,Western Union |
| Incoterm: | Ocean,Land,Air,Express |
| Min. Order: | 1 Piece/Pieces |
| Transportation: | Ocean,Land,Air,Express |
Zhejiang Trimone Technology Co., Ltd
Zhejiang Trimone Technology Co., Ltd
| Payment Type: | T/T,Paypal,D/A,Money Gram,Western Union |
| Incoterm: | Ocean,Land,Air,Express |
| Min. Order: | 1 Piece/Pieces |
| Transportation: | Ocean,Land,Air,Express |
Brand: 3Grace
warranty period: 3months-1year
Custom processing: Yes
place of origin: China
Chassis style: Wall Socket
Grounded: Gfci
Scope of application: Commercial, Industrial, Hospital, Residential / General-Purpose
Description: Self-Test TR GFCI Outlet
Material: PC+Copper
Certification: UL & CUL
Features: Self-Testing
Amperage/Voltage: 20Amp 125V 60HZ
Size: 105*44.6*42.6mm
Weight: 123.5g（Not including wall plate)
Operating Temperature: -35℃ to 66℃
Wire Size: 12-14AWG
| Selling Units: | Piece/Pieces |
| Package Type: | 1pc with color box, 10pcs with white box, 50pcs/carton or 100pcs/carton or Customized |
| Picture Example: |
|
A ground fault circuit interrupter (GFCI) outlet is a special type of circuit breaker that can automatically shut off power directly at the outlet when it detects an electrical fault.
Product Specification
| Model: TSI | |
| Electrical Specifications | |
| Self Testing | Yes |
| Amperage | 20 Amp |
| Rated Voltage | 125 VAC |
| Rated Frequency | 60 Hz |
| Pole | 2 |
| Wire | 3 |
| Grounding | Self Grounding With Grounding Clip |
| Short Circuit Current Rating | 10KA |
| Trip Level | Class A, 6mA plus or minus 4mA |
| Trip Time | <25ms |
| Material Specifications | |
| Body Material | PC-Thermoplastic Flammability UL-94 V2 Rating |
| Face Material | PC-Thermoplastic Flammability UL-94 V2 Rating |
| Terminal Screws | Plated Steel |
| Grounding Screw | Plated Steel |
| Yoke | Zinc-Plated Steel |
| Mechanical Specifications | |
| Terminal ID | Brass-Hot, Green-Ground, Silver-Neutral |
| Terminal Wire applied | 14-12 AWG |
| Termination | Back & Side |
| Environmental Specifications | Operating Temperature: -35℃ to +66℃ |
| Applicable Standards | UL/CUL UL498/UL943 5th Edition |
| Warranty | 2-Years |
Product Feature:
1. Trimone’s faceless GFCI Receptacle is rated up to 20Amp, capable of supporting common uses in home.
2. Red LED light: When the power is on, the Red LED light will flashes one time within 5 seconds.
3. Green LED light: When the GFCI is power on, the Green LED light in on condition: the GFCI is functioning well.
4. TEST Button: Press the “Test” button to test the device once powered on, the flow of electricity will be stopped.
5. Reset Button: The Green LED light in off condition: need to press the “Reset“ button to have the power connected

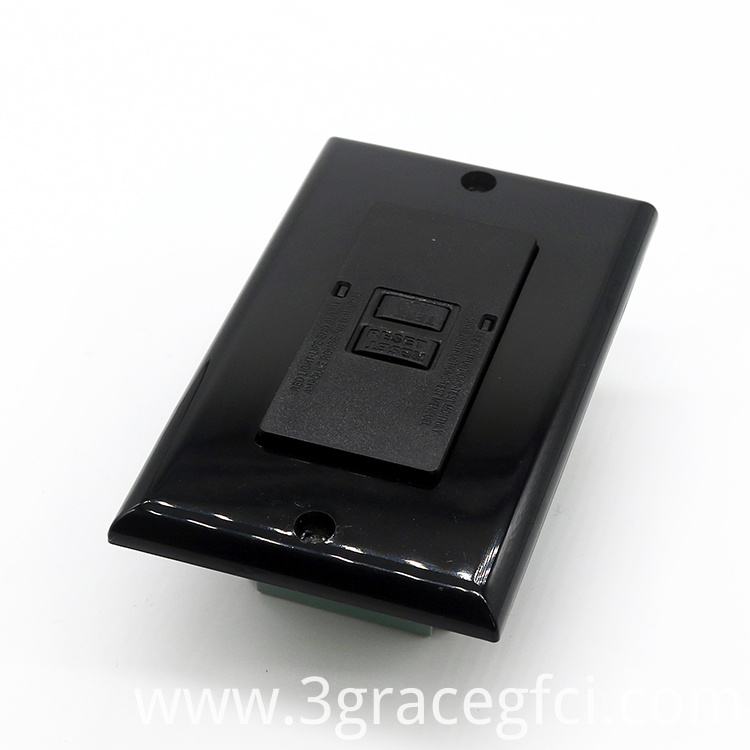

6. Housing cover can customized according to your requirement
Product Application:
A GFCI normally applied in areas where appliances and power tools are used in close proximity to water. Tap water or wet objects are able to conduct electricity very easily and can connect your body to a ground potential, thus the possibility to receive a shock from a ground fault increases. So it is important to install a gfci in these areas to protect people from electric shock.
FAQ:
Question: are these compatible with aluminum wiring?
Answer: Use this GFCI Outlet with copper or copper-clad wire. Do not use it with aluminum wire.
Question: will it work on 220v?
Answer: No. It is different with a 220V outlet, That is by design so someone doesn't accidentally plug a 110 volt item into a 220 volt plug and blow it out
Question: The green light is on but no power is coming out?
Answer: Please try to press the test button and and then press the reset button, if the GFCI can be reset, and the power can come out to the load side, it is in good condition, if not, it is at its end of life.
Packaging:
Below GFCI packaging for your reference
Customized packaging available

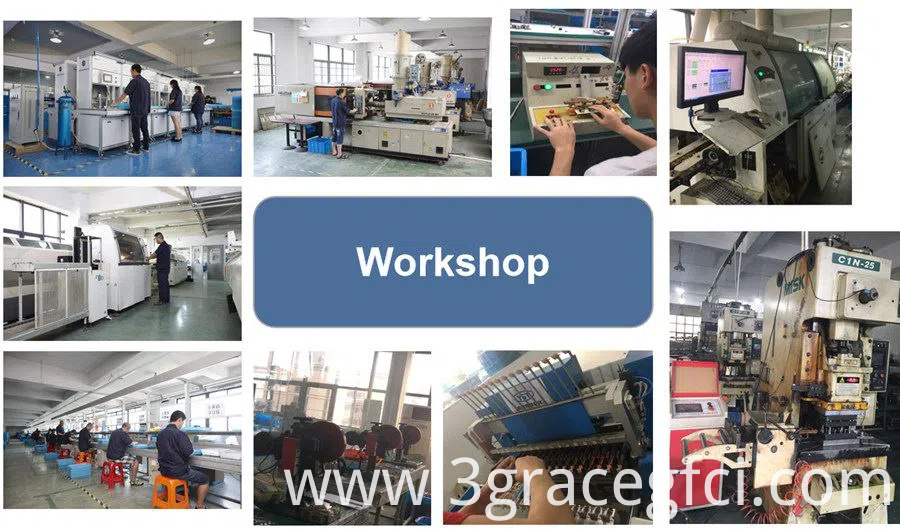

Workshop
Lishui Trimone is a China GFCI manufacturer, with more than 20year experience in manufacturing low voltage electrical apparatus, committed to delivering high quality and reliable, safe products with the most competitive price to our customers.
Please don’t hesitate to contact us for a better price for all our offerings.
