Zhejiang Trimone Technology Co., Ltd
| Payment Type: | T/T,Paypal,D/A,Money Gram,Western Union |
| Incoterm: | Ocean,Land,Air,Express |
| Min. Order: | 1 Piece/Pieces |
| Transportation: | Ocean,Land,Air,Express |
Model No.: WTST15
Brand: 3 Grace
warranty period: 3months-1year
Custom processing: Yes
place of origin: China
Chassis style: Wall Socket
Grounded: Gfci
Scope of application: Commercial, Industrial, Hospital, Residential / General-Purpose

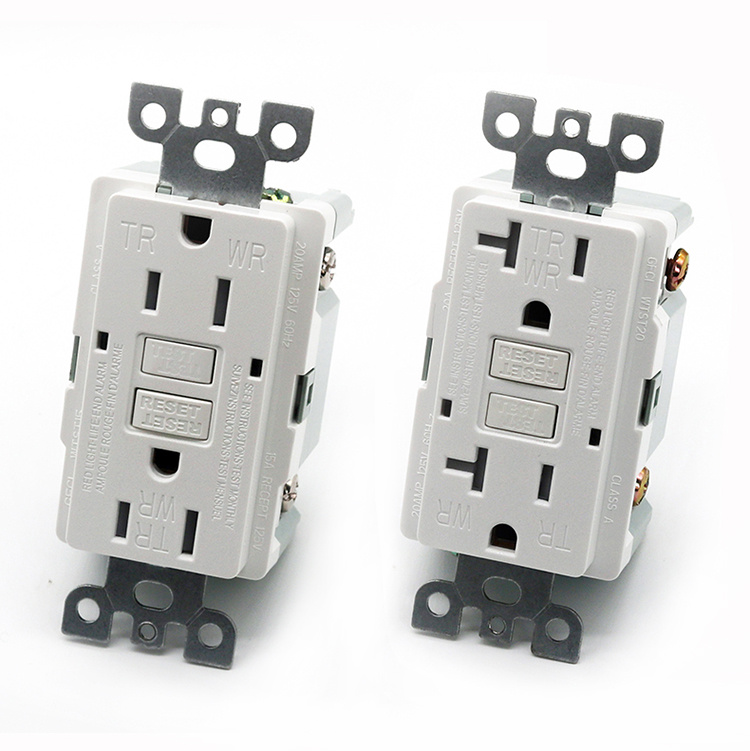

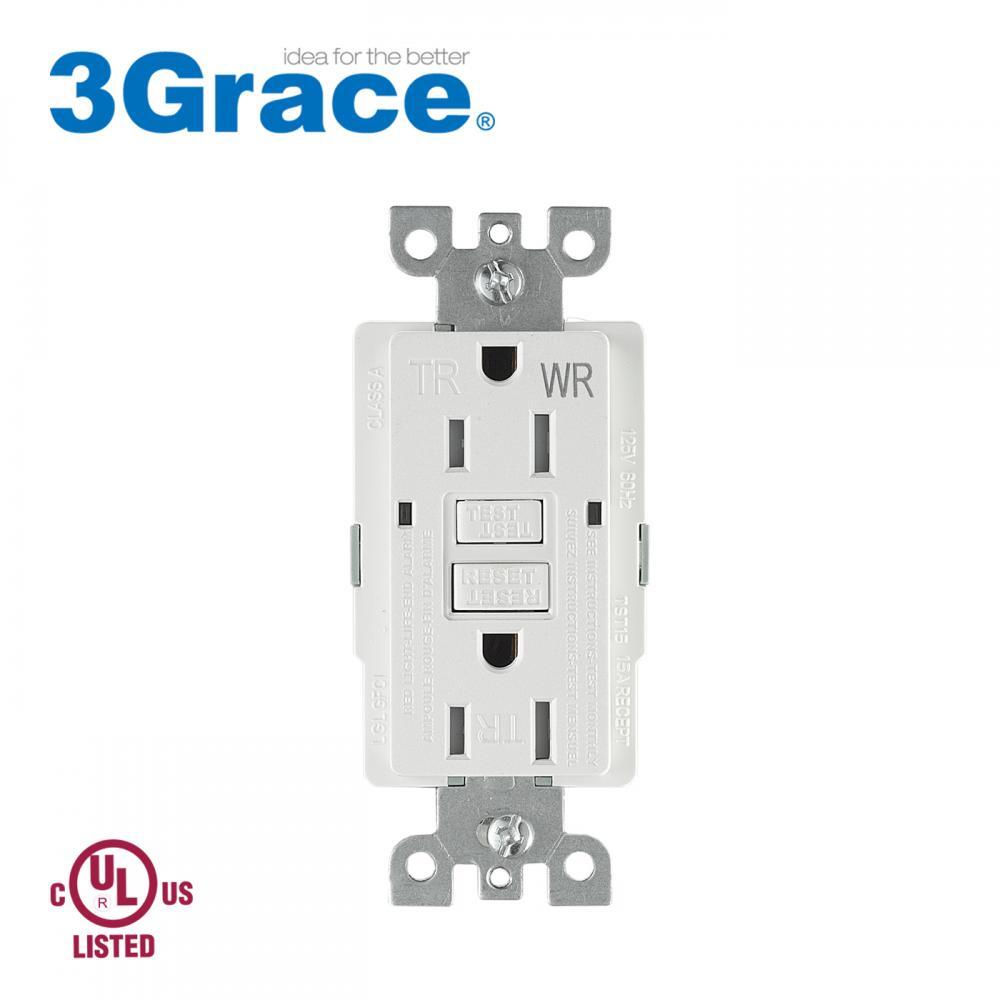

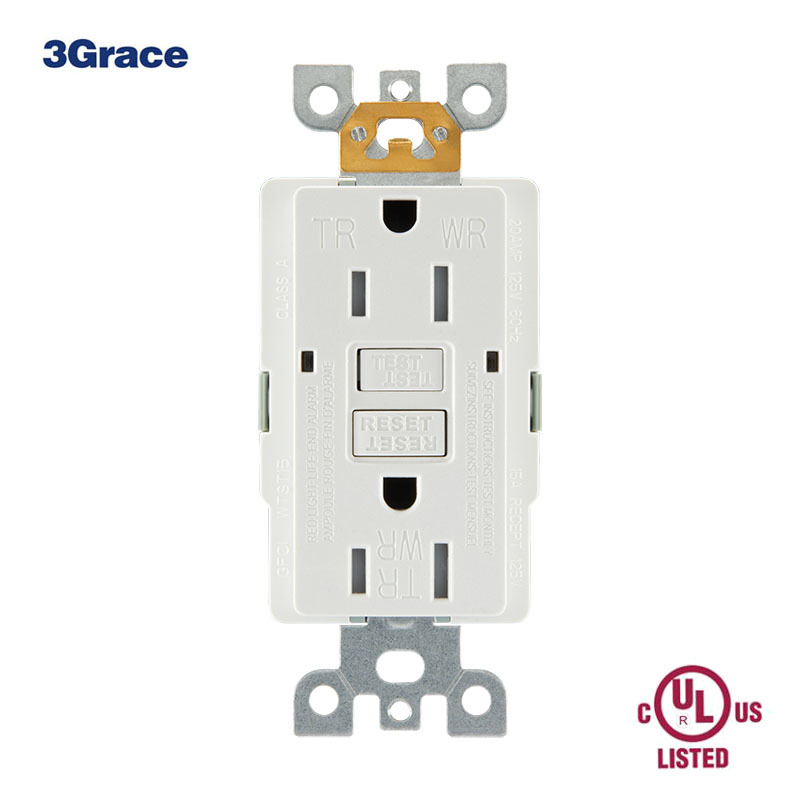

Description: Self-Test TR WR GFCI Outlet
Material: PC+Copper
Certification: UL & CUL
Features: TR, WR, Self-Testing
Amperage/Voltage: 15Amp 125V
NEMA: 5-15R
Size: 105*44.6*42.6mm
Weight: 123.5g（Not including wall plate)
Operating Temperature: -35℃ to 66℃
Wire Size: 12-14AWG
| Selling Units: | Piece/Pieces |
| Package Type: | 1pc with color box, 10pcs with white box, 50pcs/carton or 100pcs/carton or Customized |
| Picture Example: |
|
2015 TS15 2017 TS15L
GFCI Duplex receptacle 15Amp 125V AC 60Hz with Led indicator
| Name | GFCI Outlet, Self-test socket, Switch Outlet, safety outlet, |
| Mode | WTST15 |
| Amperage | 15Amp |
| Voltage | 125V |
| Name | 5-15R |
| Grounding | Self-grounding |
| Face Material | PC |
| Body Material | PC |
| Standard | UL943 |
| Certification | UL& CUL |
| Certification | No.E473989 |
| Operating Temperature | -35℃-66℃ |
| Operating Humidity | 30-93% |
| Flammability | Rated V-2 per UL943 |
| Accepted Terminal Wire Size | 12 gauge to 14 gauge |
| Wiring Type | Rear pressure plate and side wiring |

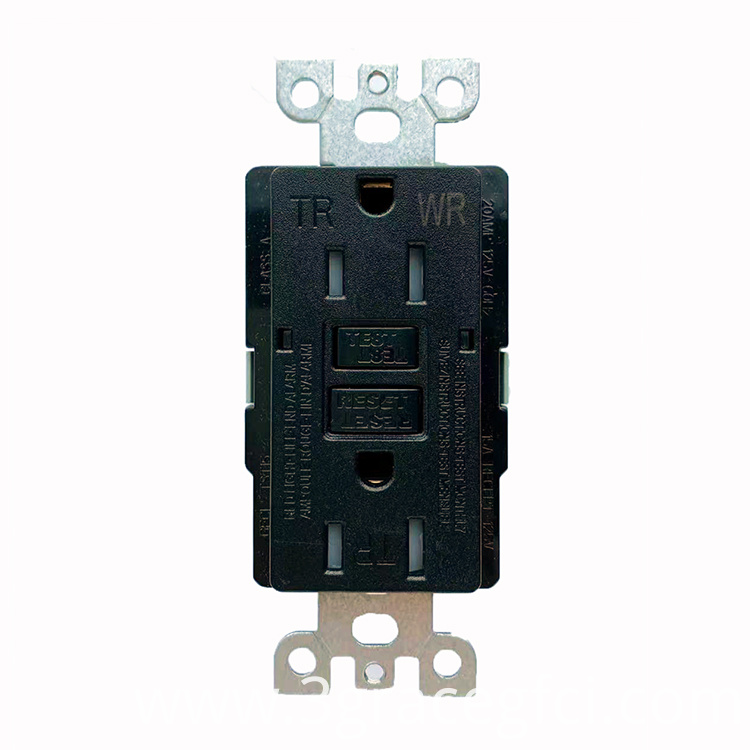

| Color | Black, or white/vory/Almond/Brown or Customized |
| Advantage | Professional manufacturer, directly service you, provide you quality goods with afford price |
Feature: self-test – GFCI conducts automatic self-test every 1-10 minutes to make sure it can respond to a ground fault
Market: north & south American
Application: kitchen, bathroom, garage;

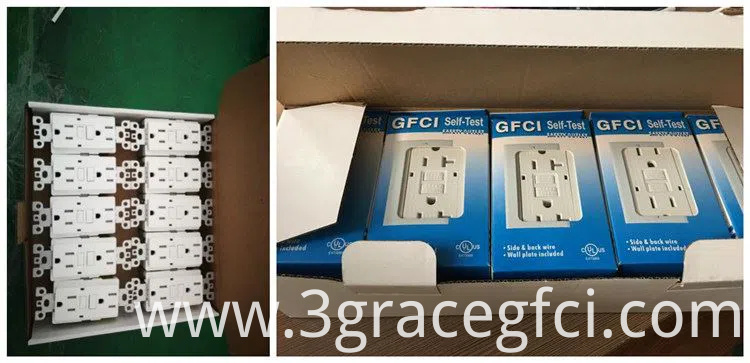

Packing:

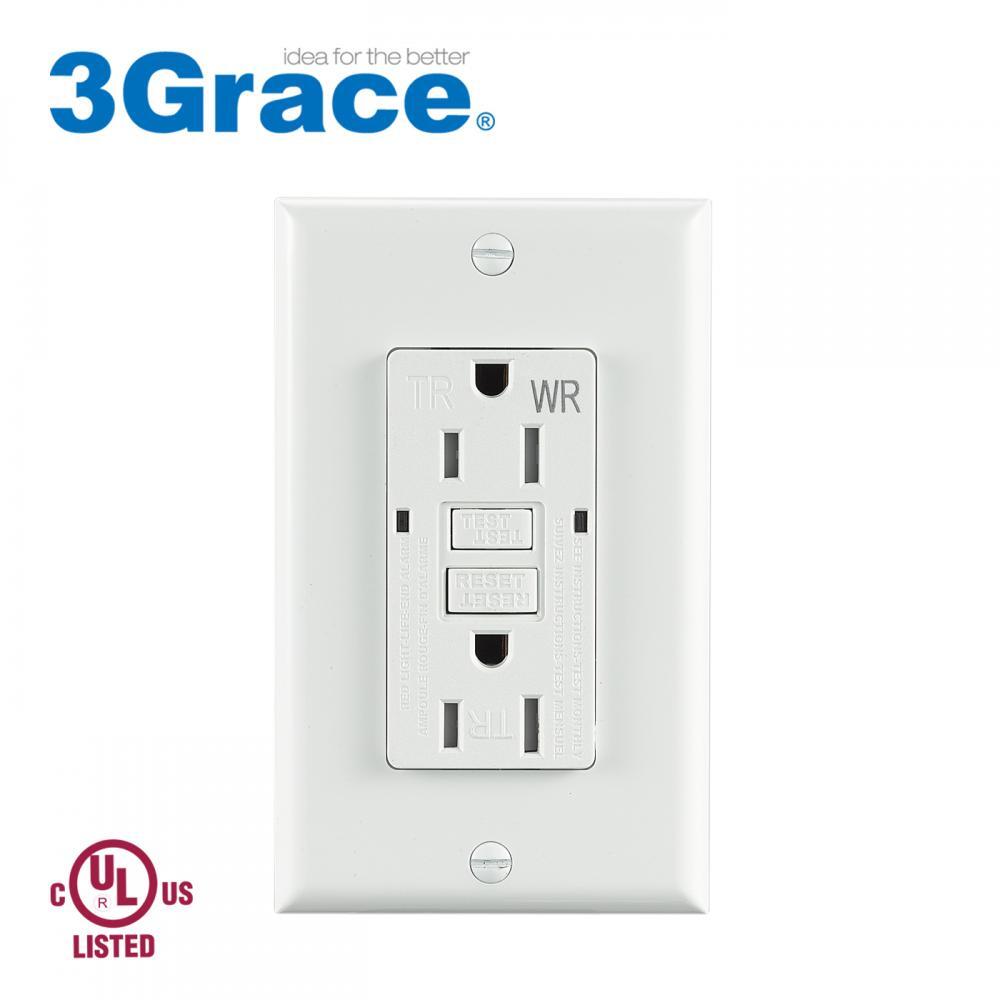

Package Type: Without/with Wall Plate, customers can according to your needs to choose;
Customized, Customers can according to different requirements to choose.
Advantage:
Professional manufacturer who has been in this line for 20 years, directly service you, provide you quality goods with afford price.
