Zhejiang Trimone Technology Co., Ltd
| Payment Type: | T/T,Paypal |
| Incoterm: | Ocean,Land,Air,Express |
| Min. Order: | 1 Piece/Pieces |
| Transportation: | Ocean,Land,Air,Express |
Model No.: TST15
Brand: 3 Grace
warranty period: 3months-1year
Custom processing: Yes
place of origin: China
Chassis style: Wall Socket
Grounded: Gfci, Standard Grounding
Scope of application: Commercial, Industrial, Hospital, Residential / General-Purpose

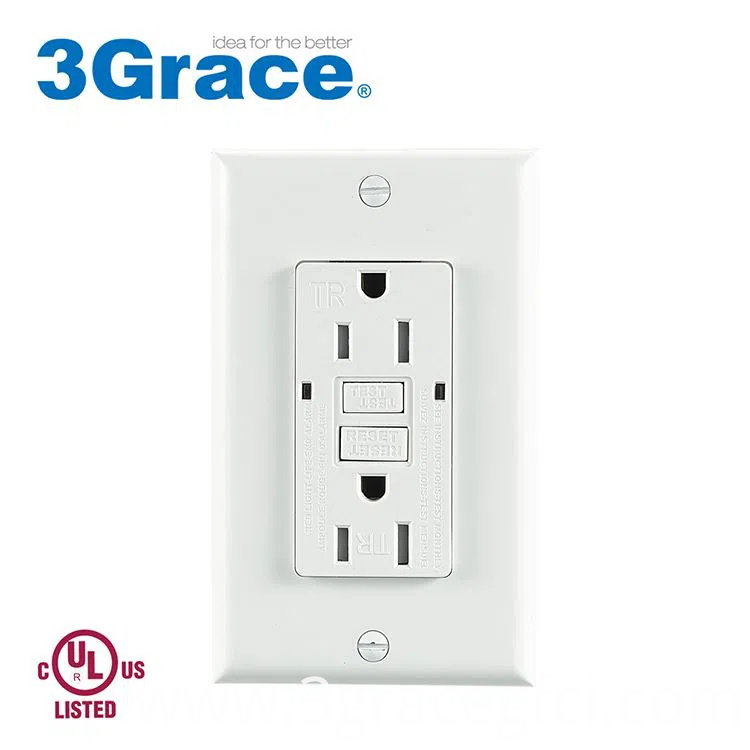

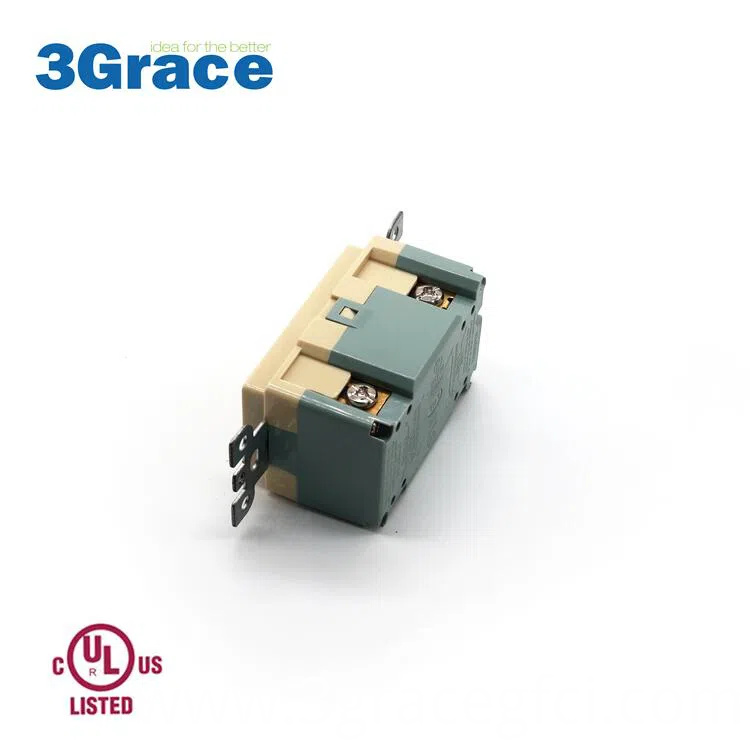

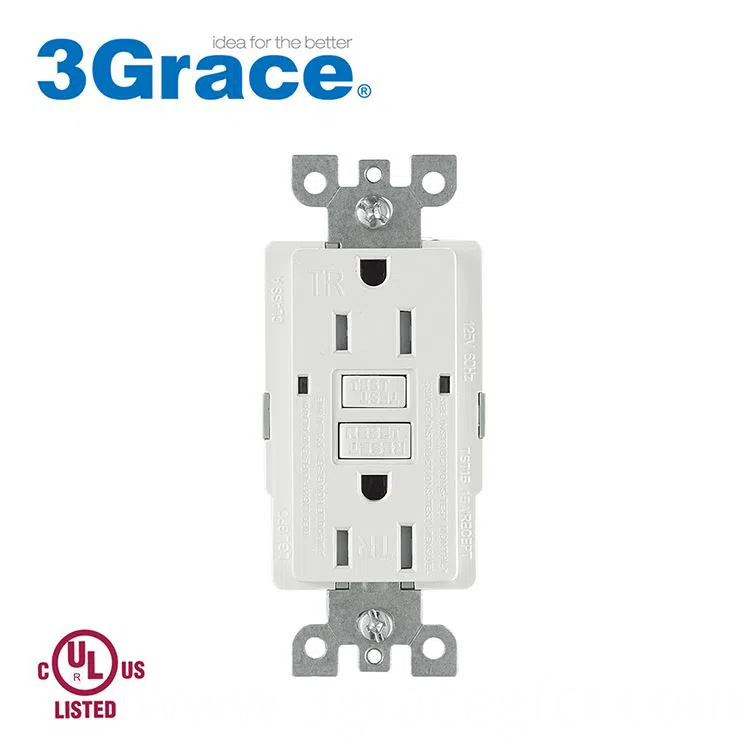

Product name: Ground Fault Circuit Interrupter
Input Voltage: 120V
Frequency: 60Hz
Trip Time: 0.025 Second
GFCI size: 105*44.6*42.6mm
Weight: 123.5g

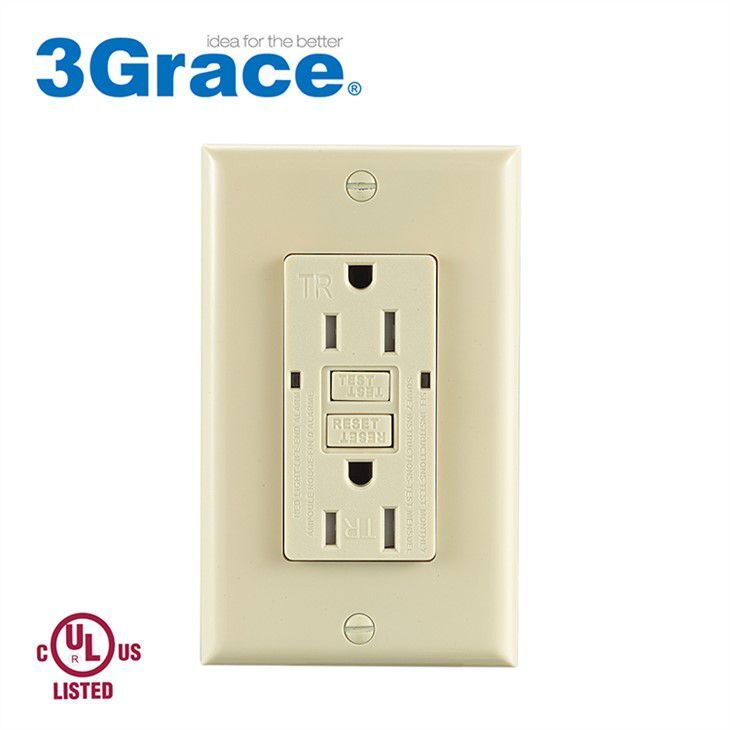

Color: White, Grey, Ivory, Black, Almond
UL 943 (Meet 2015 requirements): Class A GFCI
Flammability: Rated V-2 per UL 943
Operating Temperature: -35℃ to 66℃
| Selling Units: | Piece/Pieces |
| Package Type: | 1pc with color box, 10pcs with white box, 50pcs/carton or 100pcs/carton or Customized |
| Picture Example: |
|
What is GFCI ?
GFCI is the abbreviation of Ground Fault Circuit Interrupter in English.
It is a special protection device for the North American market. The working voltage is 264VAC-102VAC, the working temperature is -35Deg~66Deg, the disconnection time is <25mS (at TRIP CURRENT of 500 ohms), Open current: 4~6 mA; North America's certification of GFCI is very strict, mainly UL and ETL certification, if UL certification is done, all tests of the product are carried out in the UL laboratory in the United States.
All GFCIs should be tested every time they are used to make sure they are working properly and protecting you from lethal shocks. GFCIs should be inspected after installation to ensure they work and properly protect the circuit.

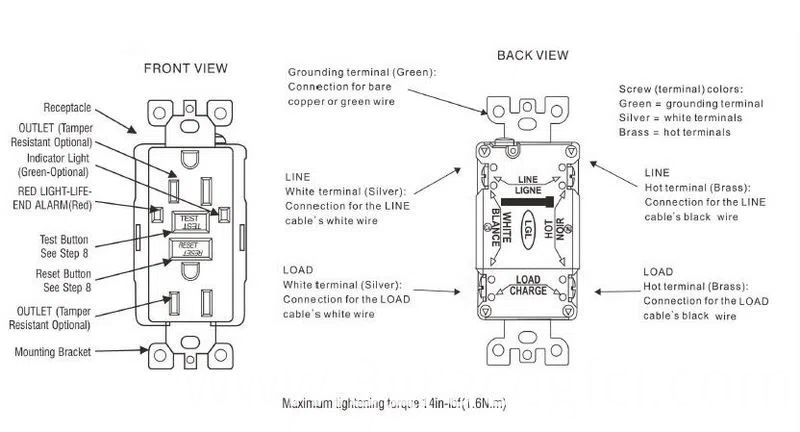

To test the GFCI Outlet：
1.first plug the nightlight or lamp into the power outlet. The light should come on at that time, press the "TEST" button. The GFCI's "RESET" button should pop up, and the light will turn off.
2. If it says "reset" the button will pop up but the nightlight doesn't go off, the GFCI has been wired incorrectly. Contact an electrician to correct wiring errors.
If the "reset" button does not pop up, the GFCI is defective and should be replaced.
If the GFCI is functional and the lights are off, press the "reset" button to restore power to the way out.
3Grace Lishui Trimone Electrical Technology Co., Ltd., is a manufacturer of ground-fault circuit interrupter(GFCI), Switches,Receptacles, Wall plates and electrical accessories since 2001, and our main product and advantage product is Gfci Outlet/Receptacle.
Warmly welcome to visit our factory
