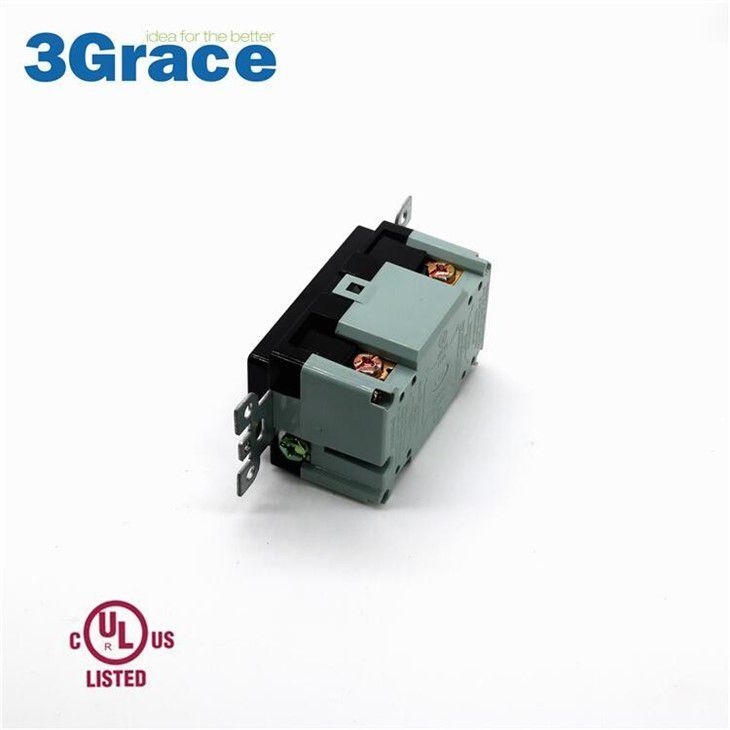

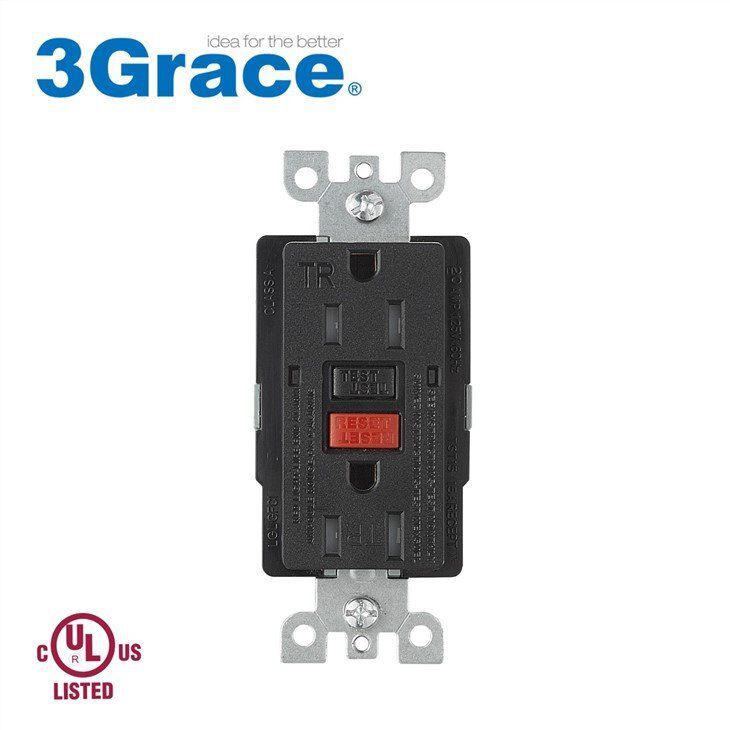

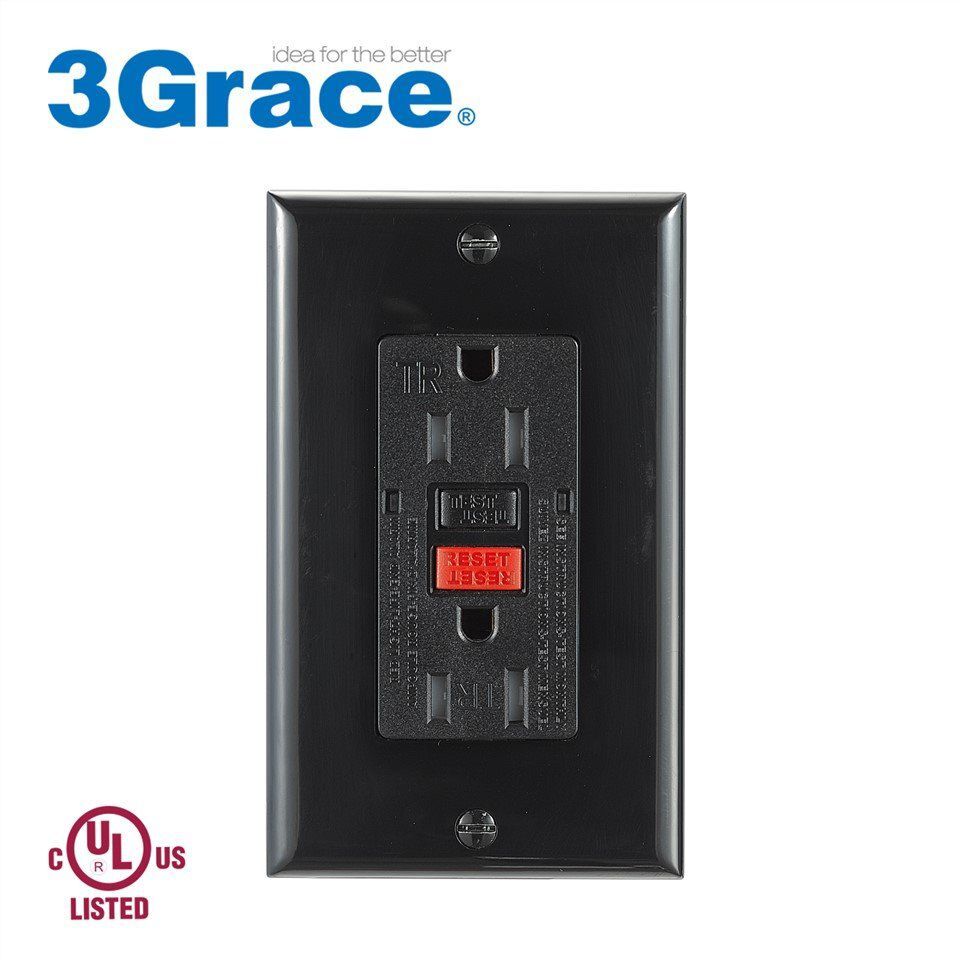

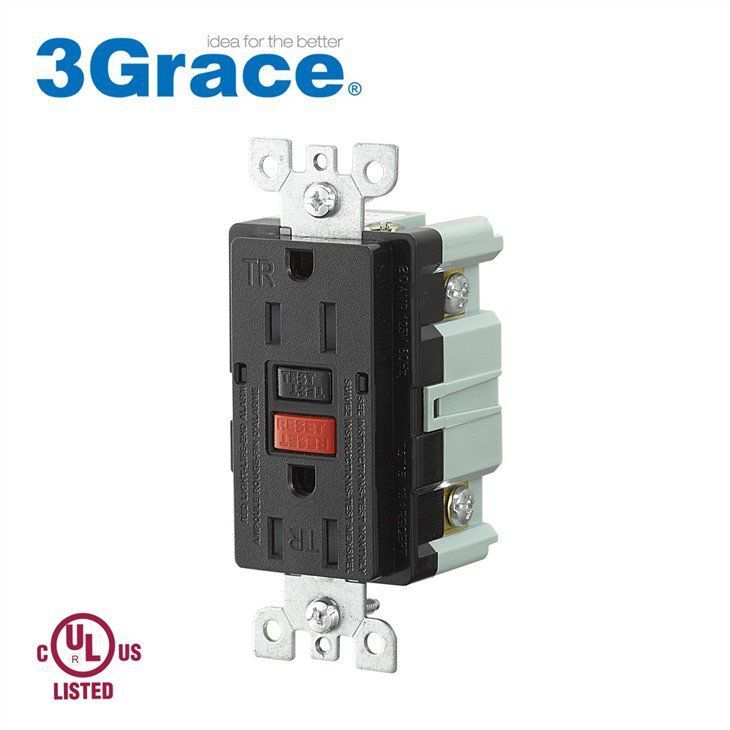

15Amp Tamper Resistant Self-Test GFCI Outlet
Get Latest Price| Payment Type: | T/T,Paypal |
| Incoterm: | Ocean,Land,Air,Express |
| Min. Order: | 1 Piece/Pieces |
| Transportation: | Ocean,Land,Air,Express |
Zhejiang Trimone Technology Co., Ltd
Zhejiang Trimone Technology Co., Ltd
| Payment Type: | T/T,Paypal |
| Incoterm: | Ocean,Land,Air,Express |
| Min. Order: | 1 Piece/Pieces |
| Transportation: | Ocean,Land,Air,Express |
Model No.: TST15
Brand: 3 Grace
warranty period: 3months-1year
Custom processing: Yes
place of origin: China
Chassis style: Wall Socket
Grounded: Gfci
Scope of application: Commercial, Industrial, Hospital, Residential / General-Purpose

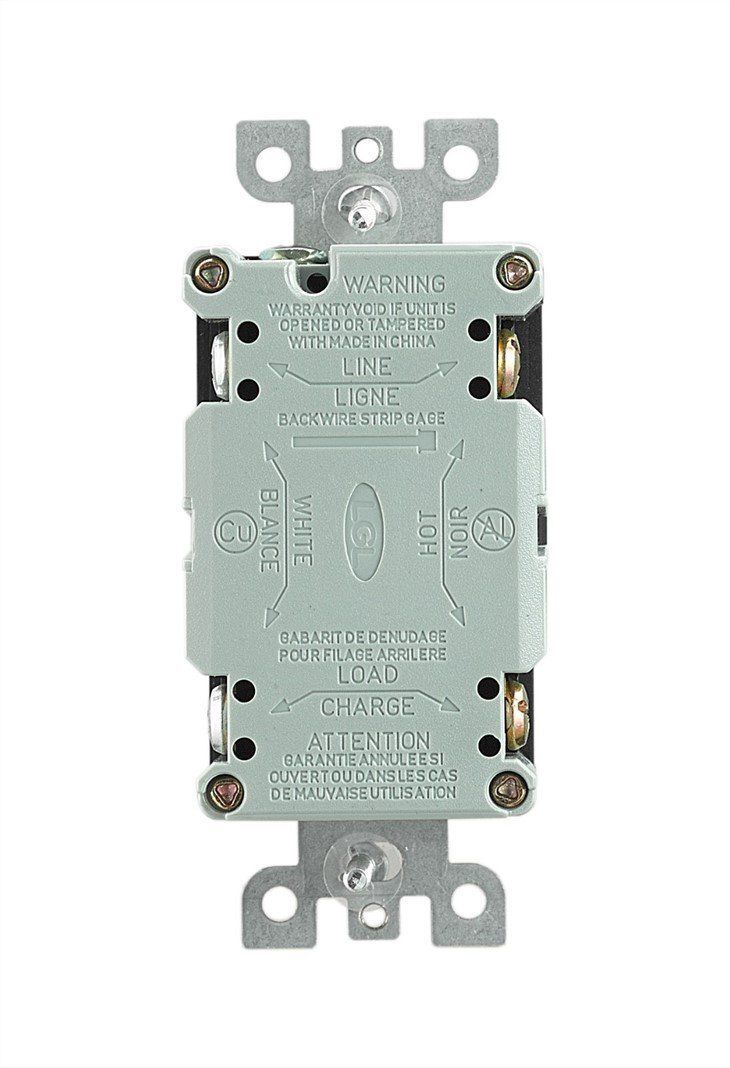

Wiring Type: Rear pressure plate and side wiring
Flammability: Rated V-2 per UL 943
Operating Temperature: -35℃ to 66℃
Operating Humidity: 30-93%
Material: PC+copper
Size: 105*44.6*42.6mm
Weight: 123.5g(without wallplate）
Trip Time: 0.025s
Current: 120V AC
Auto-Monitoring Function: 1s
| Selling Units: | Piece/Pieces |
| Package Type: | 1pc with color box, 10pcs with white box, 50pcs/carton or 100pcs/carton or Customized |
| Picture Example: |
|
A GFCI (Ground Fault Circuit Interrupter) device protects us from receiving electric shocks from faults in the electrical devices we use in our home. It works by comparing the input current on the hot side to the output current on the neutral side. If there's the slightest difference in current, on the order of a few milliamp, then there is current leaking out somewhere, possibly through somebody's body. To protect us in this situation, the device very quickly cuts off the power supply to the leaking device, within 20-30 milliseconds, greatly reducing any possible human tissue damage from errant current.
Product Specification
| Model: TST15 | |
| Electrical Specifications | |
| Self Testing | Yes |
| Amperage | 15 Amp |
| Rated Voltage | 125 VAC |
| Rated Frequency | 60 Hz |
| Pole | 2 |
| Wire | 3 |
| Grounding | Self Grounding With Grounding Clip |
| Short Circuit Current Rating | 10KA |
| Trip Level | Class A, 6mA plus or minus 4mA |
| Trip Time | <25ms |
| Material Specifications | |
| Body Material | PC-Thermoplastic Flammability UL-94 V2 Rating |
| Face Material | PC-Thermoplastic Flammability UL-94 V2 Rating |
| Terminal Screws | Plated Steel |
| Grounding Screw | Plated Steel |
| Yoke | Zinc-Plated Steel |
| Mechanical Specifications | |
| Terminal ID | Brass-Hot, Green-Ground, Silver-Neutral |
| Terminal Wire applied | 14-12 AWG |
| Tamper Resistant | No |
| Weather Resistant | No |
| Termination | Back & Side |
| Environmental Specifications | Operating Temperature: -35℃ to +66℃ |
| Applicable Standards | UL/CUL UL498/UL943 5th Edition |
| Warranty | 2-Years |
Product Feature:
1. GFCI shall automatically conduct self-test every 15 minutes to ensure continuous protection.
2. Auto-monitoring exceeds the UL requirement UL943 2018 version.
3. On initial power up, tests the GFCI within 3 seconds.
4. With two led indicator: Green working indicator and Red Alarm Indicator
5. Trip threshold meets or exceeds UL requirements for tripping time.
6. UL Standard 943 Class A & UL498 for Receptacle.
7. Advanced electronics design provides superior resistance to electrical surges and over-voltages.
Product Application:
GFCI Outlet are widely applied in areas:
Residential: Ketchens, Bathroom, Garages,Basements, laundry rooms, Wet sink and other Wet lacations around home
Public Areas: Wherever receptacles are located near wet or damp lacations
Commercial Office: Bathrooms, basement areas, hallways and kitchen facilities
Educational Facilities: Classrooms, Restrooms, Laboratories, Dormitories and Kitchens
FAQ:
Question: Are the GFCI shown in this page really ul listed as claimed?
Answer: Dear Customer, all our products are UL listed and 100% inspected before shipment. The our gfci UL file Number is E473989 ( The UL label could be found on the body of the Gfci Outlet).
Question: can the GFCI be used in a non grounded circuit in an old house if you do not have a ground wire?
Answer: yes, it could be used in a non grounding circuit. But for your safety, please check with an professional electrician.
Question: Can the gfci be installed indoor and outdoors?
Answer: yes, this GFCI outlet constructed with advanced UV stabilized engineering to provide superior corrosion, temperature, and UV resistance, preventing discoloration and aging, ideal for outdoor use (recommend to install with outdoor protective covers).
Packaging:
Providing with factory neutral packaging:
Workshop
3Grace is a Brand belongs to Trimone, the first GFCI manufacturer in China, If you are interested in our GFCI series products or our other relevant product such as conventional receptacles, Usb Outlet, cover plate, Switches, welcome to visit us at No.3 Shanha Road, Shuige economic development zone, Nanmingshan Street, Liandu District, Lishui City, Zhejiang (Lijing Minzu Industrial Park).
