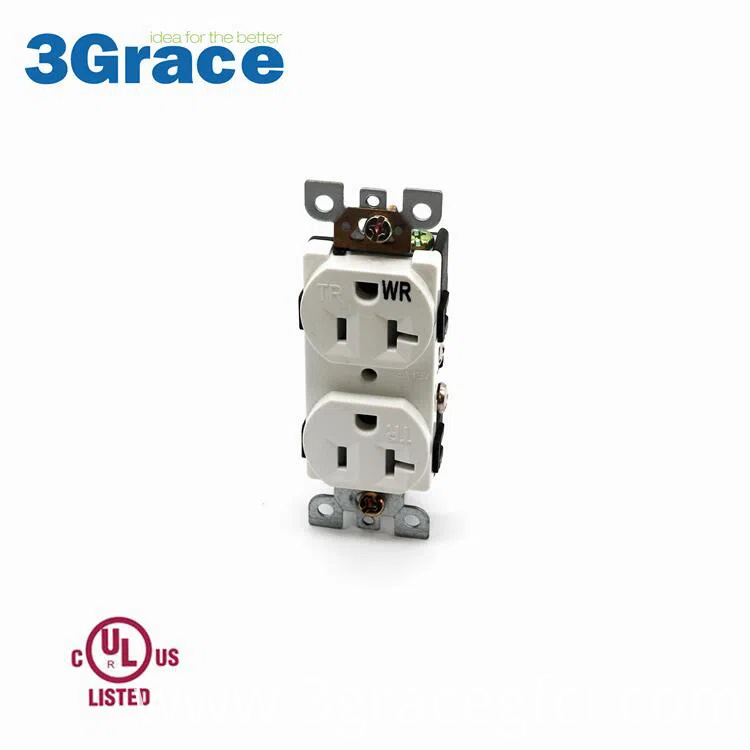

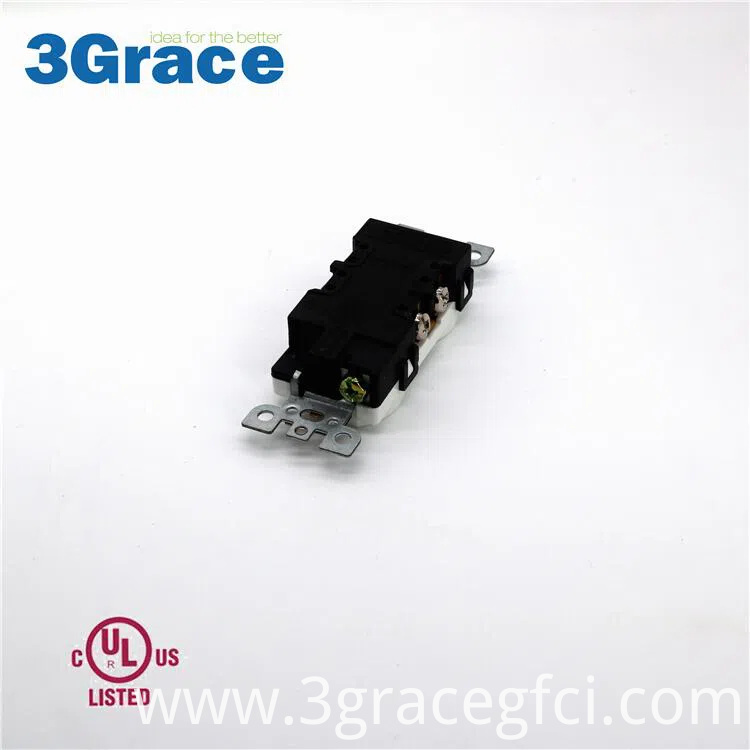

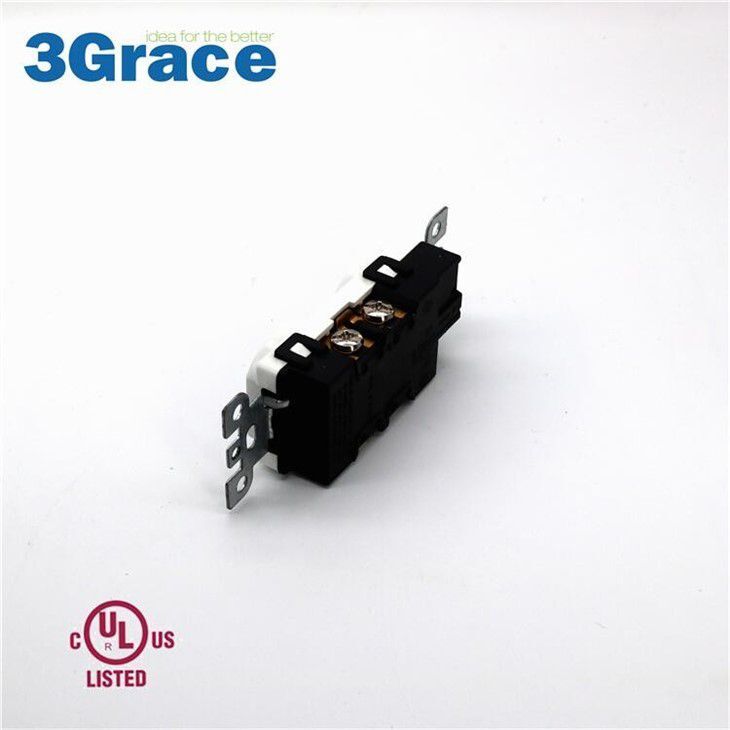

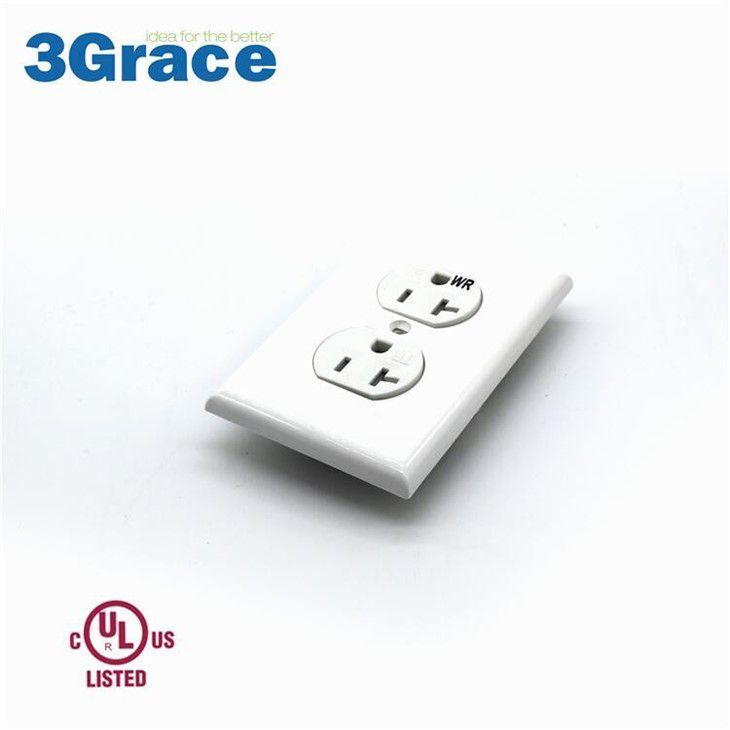

TCTW20 20A Receptacle With Tamper and Weather Resistant
Get Latest Price| Min. Order: | 1 Piece/Pieces |
Model No.: TCTW20
warranty period: 3months-1year
place of origin: China
Chassis style: Wall Socket
Grounded: Standard Grounding
Scope of application: Residential / General-Purpose
| Selling Units: | Piece/Pieces |
Made of polycarbonate
Push in #14 AWG Cu solid wire for 15A branch circuit only
Side wire terminals accept #12 or #14 AWG solid copper or stranded wire
All devices fit standard wall boxes and are suitable for ganging
Easy-access green hex head ground screw
| Product Name | TCTW20 Standard Duplex Receptacle Outlet |
| Brand Name | 3Grace |
| Rated current | 20Amp |
| Rated Voltage | 125V AC |
| HP Rating | 5-15R or 5-15P or 5-15R & 5-15P Combination |
| Appilication | Residential / General-Purpose |
| Main material | PC and copper |
| Color | White/Ivory/Almond/Black/Grey, or customized |
| Operating temperature | -20 ℃ ~ +66 ℃ |
| Certifications and Compliance | UL / CUL |
