Model No.: TGM20
Brand: 3 Grace
warranty period: 3months-1year
Custom processing: Yes
place of origin: China
Chassis style: Wall Socket
Grounded: Gfci
Scope of application: Commercial, Industrial, Hospital, Residential / General-Purpose
Color: White
Model No.: TGM20
Voltage: 125V
Current: 20A
GFCI size: 105*44.6*42.6mm
Weight: 123.5g
Accepted Terminal Wire Size: 12 gauge to 14 gauge
Flammability: Rated V-2 per UL 943
Operating Temperature: -35℃ to 66℃
Operating Humidity: 30-93%
| Selling Units: | Piece/Pieces |
| Package Type: | 1pc with color box, 10pcs with white box, 50pcs/carton or 100pcs/carton or Customized |
| Picture Example: |
|

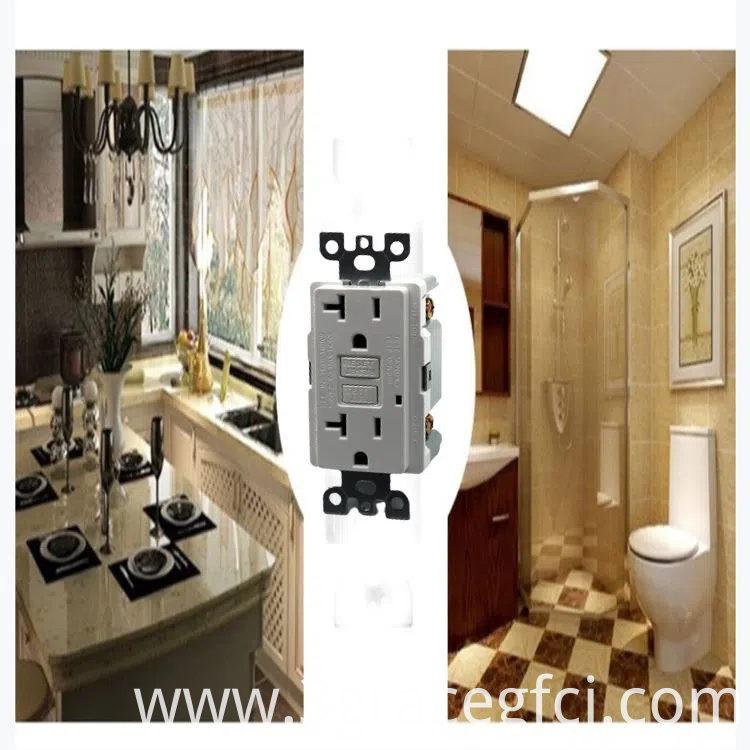

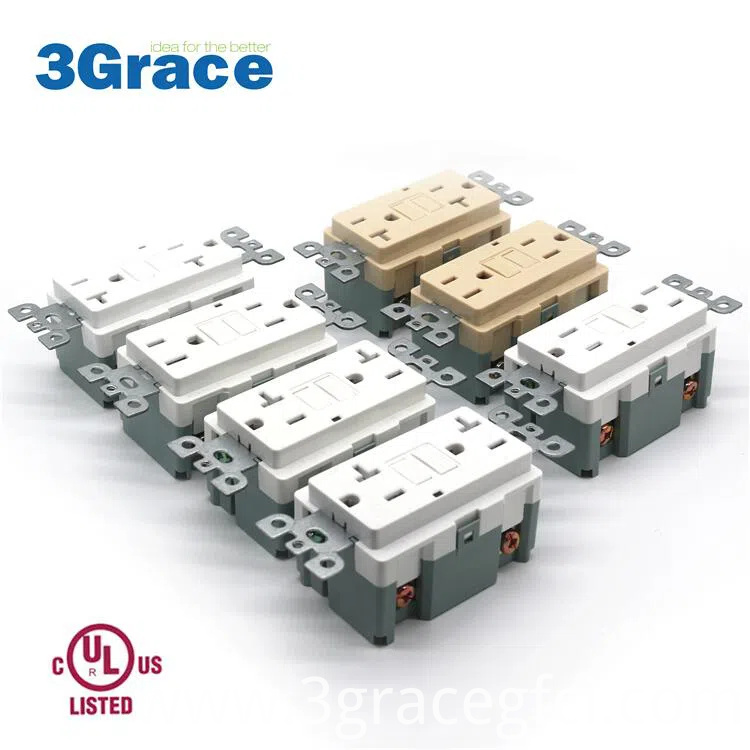

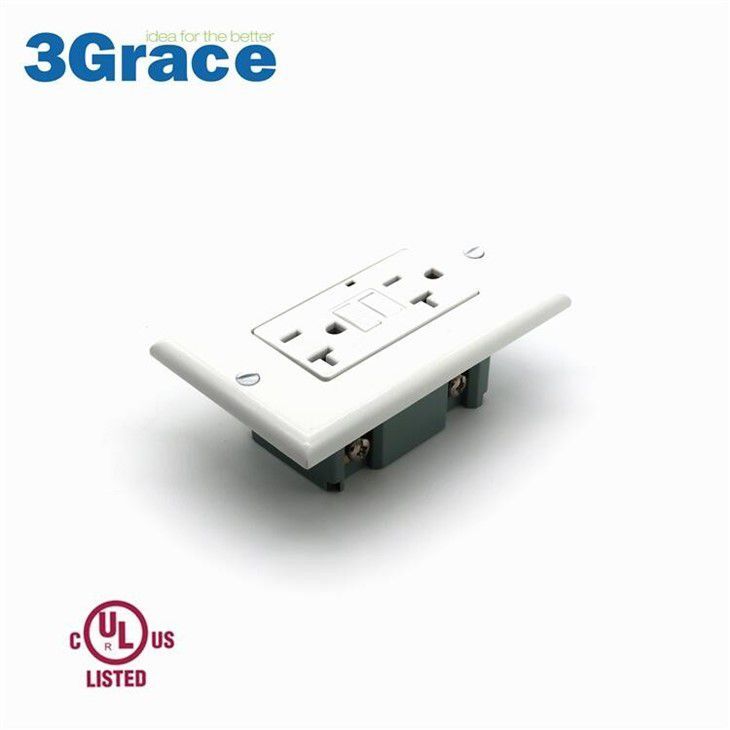

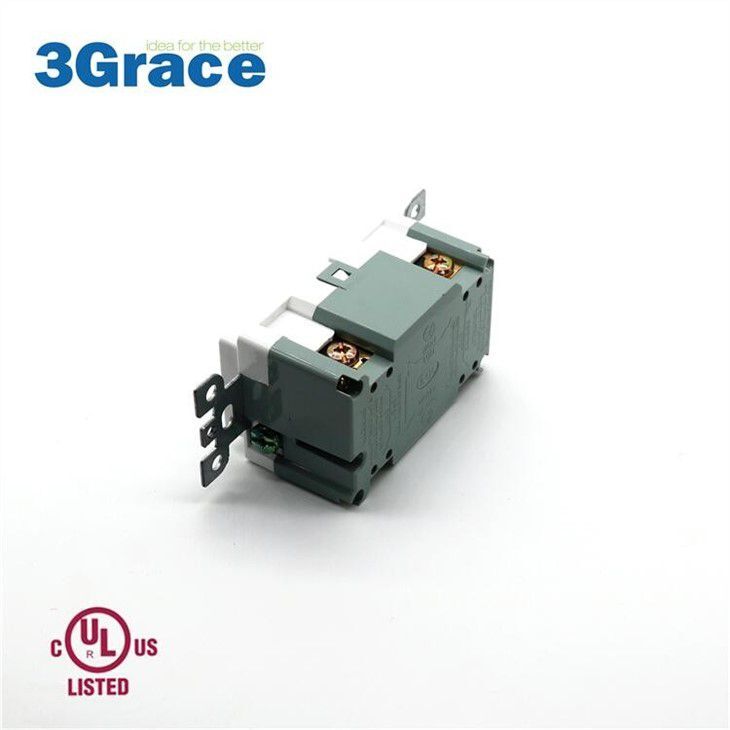

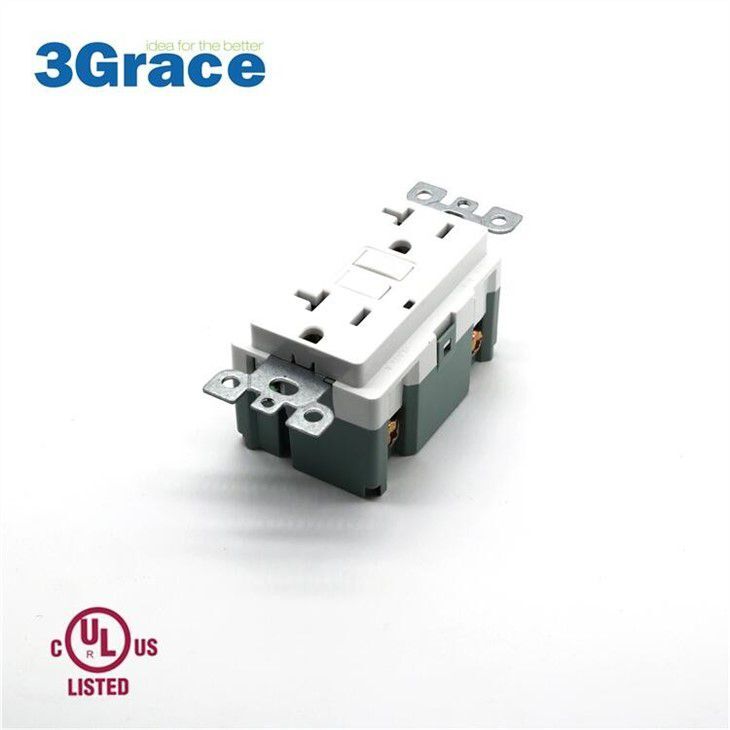

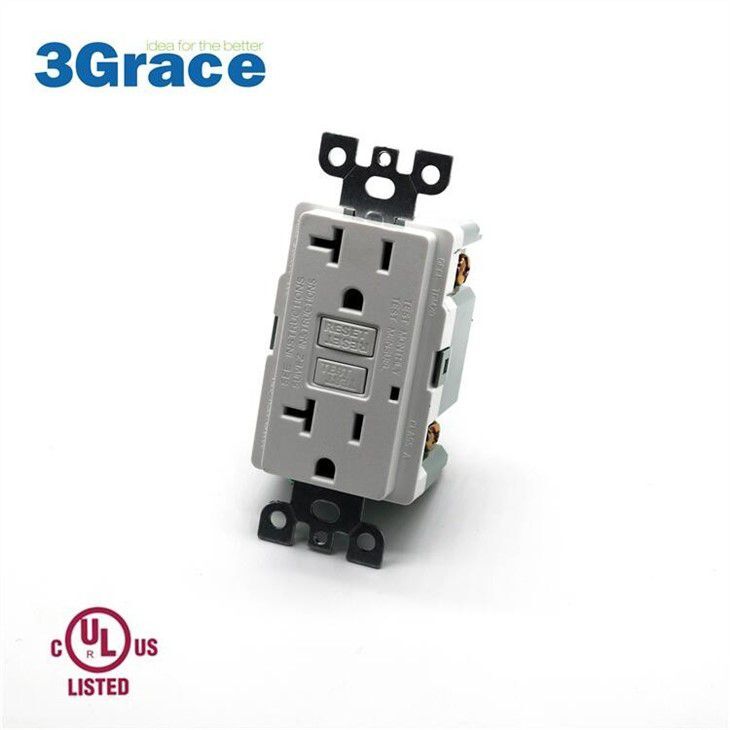

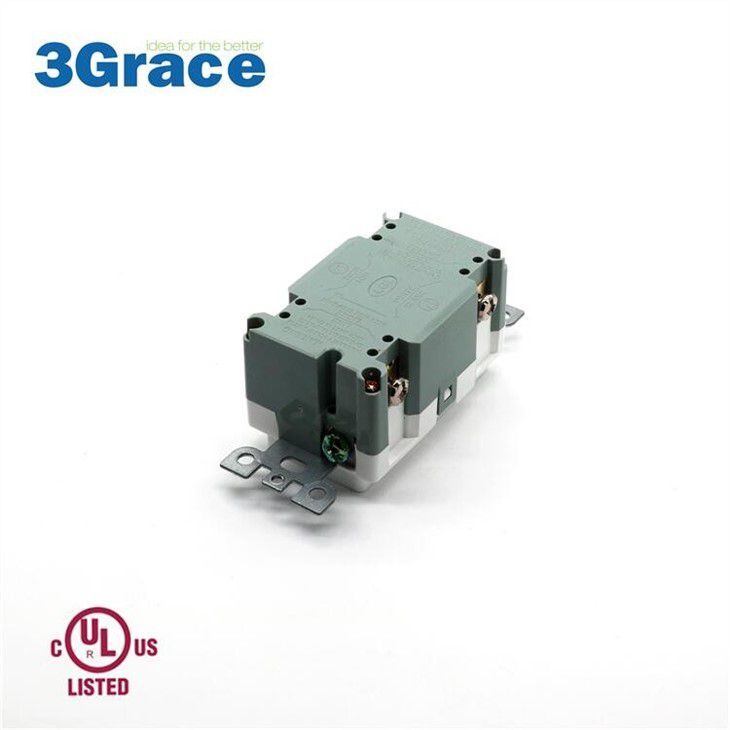

GFCI Outlet widely used in South America, white GFCI is most popular color in market, and Gray, balck, ivory GFCI for your choice. 3Grace factory who owned a lot of professional engineer and trained worker. We support the customer customzied color. TGM20 GFCI suitable for South America market.
| Model No. | TGM20 |
| Input Voltage | 125 V |
| Frequency | 60 Hz |
| Front Receptacle Current | 20 Amp |
| Trip Fault Current | 4-6 mA |
| Trip Time | 0.025 Seconds |
| Auto-Monitoring Function Test Power-up Test Interval | 1 Seconds |
| Auto-Monitoring Function Test Repeat Test Interval | 1-10 Minutes |
| Auto-Monitoring Function Test Detection and EOF LED Flash Rate | 0.1-3 Hz |
| UL 943 (Meet 2015 requirements) | Class A GFCI |
| Accepted Terminal Wire Size | 12 gauge to 14 gauge |
| Wiring Type | Rear pressure plate and side wiring |
| Flammability | Rated V-2 per UL 943 |
| Operating Temperature | -35℃ to 66℃ |
| Operating Humidity | 30-93% |
