| Payment Type: | T/T,Paypal,Western Union,Money Gram,D/A |
| Incoterm: | Ocean,Land,Air,Express |
| Min. Order: | 1 Piece/Pieces |
| Transportation: | Ocean,Land,Air,Express |
Brand: 3Grace
warranty period: 3months-1year
Custom processing: Yes
place of origin: China
Chassis style: Wall Socket
Scope of application: Commercial, Industrial, Hospital, Residential / General-Purpose
Grounded: Gfci

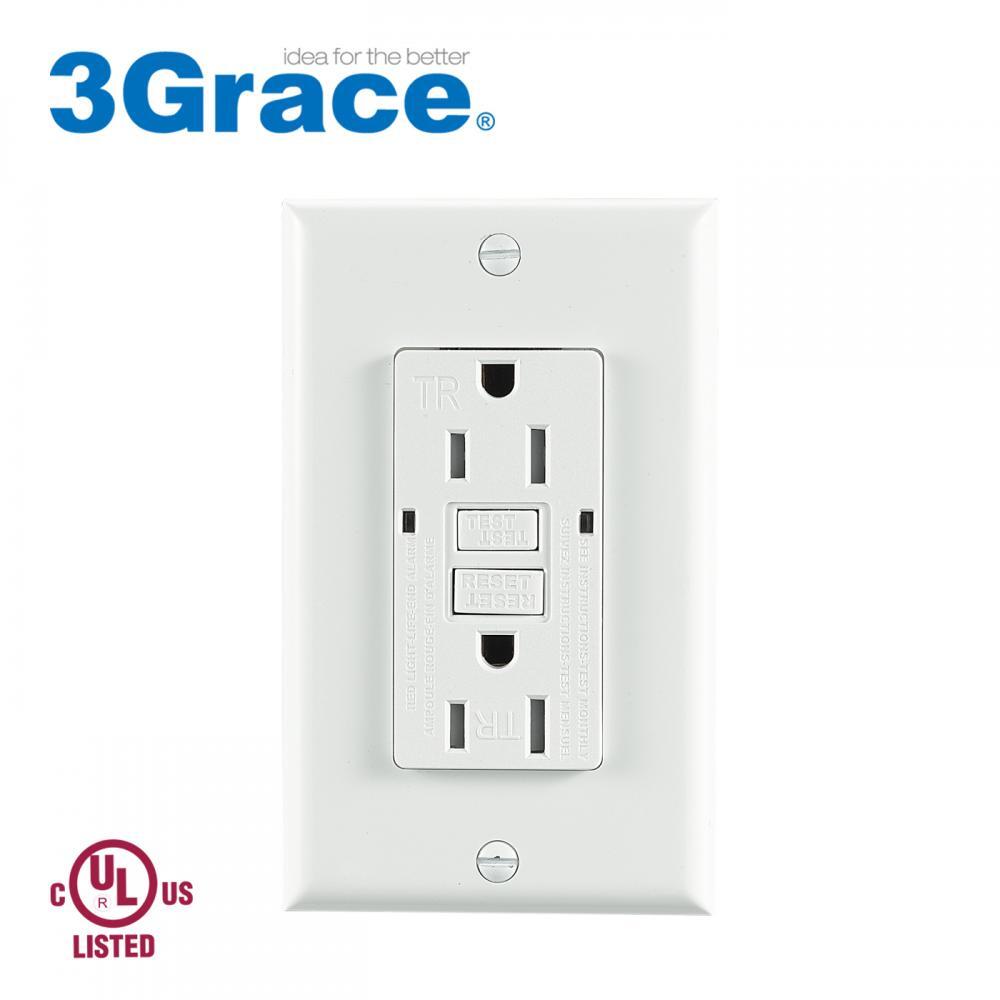

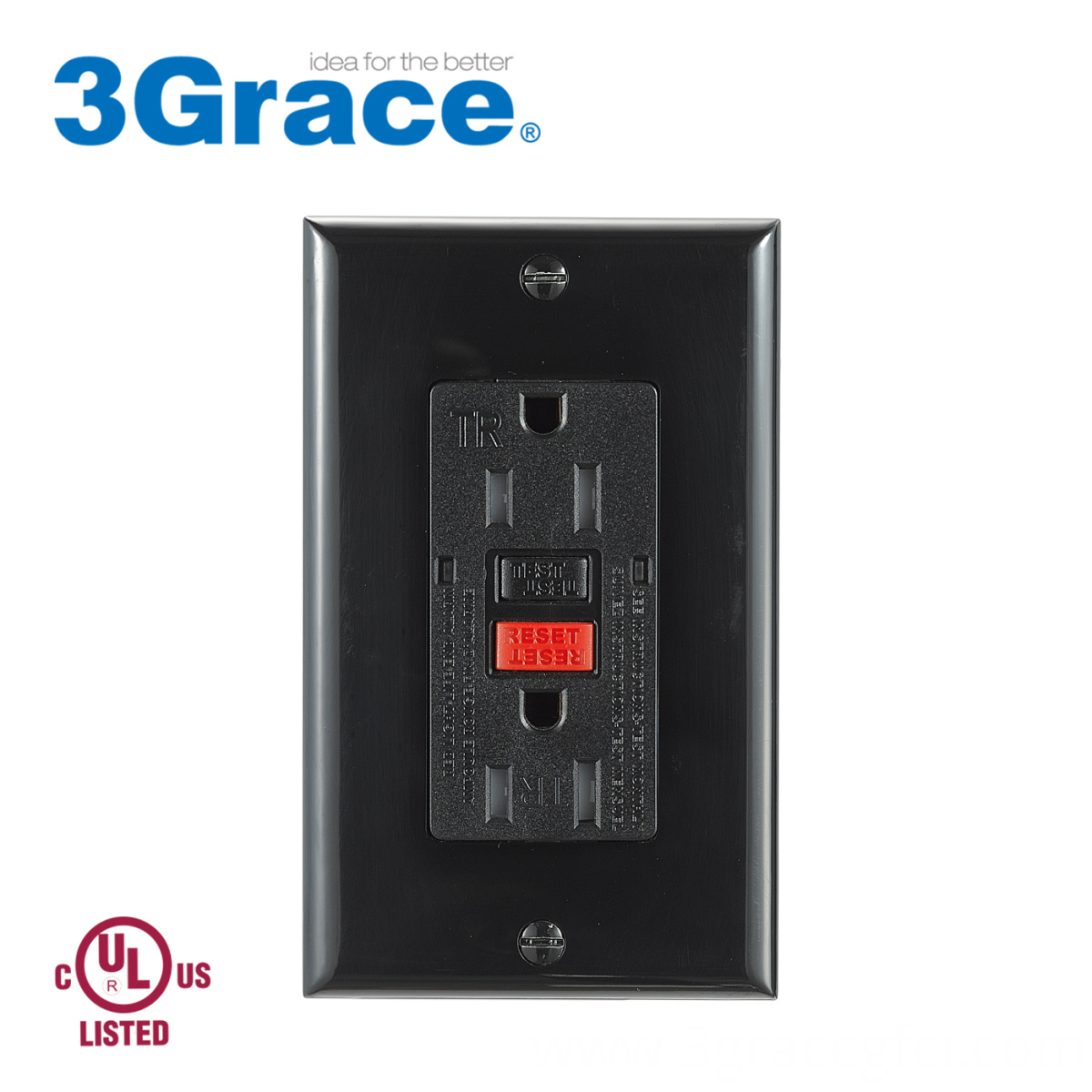

Description: Self-Test TR GFCI Outlet
Certificate: UL/CUL
Material: PC+Copper
Features: TR, WR, Self-Testing
Amperage/Voltage: 15Amp 125V
NEMA: 5-15R
Size: 105*44.6*42.6mm
Operating Temperature: -35℃ to 66℃
Wire Size: 12-14AWG
Trip Time: 0.025s
| Selling Units: | Piece/Pieces |
| Package Type: | 1pc with color box, 10pcs with white box, 50pcs/carton or 100pcs/carton or Customized |
| Picture Example: |
|
Self-Test
New Version UL 943 Standard now requires newly manufactured GFCIs to be
auto-monitoring(self-testing) by conducting and internal test to confirm that
protected power is available
Provides continuous ground fault protection
On inititial power up, tests the GFCI within 1 second
Self test(Auto-monitoring)exceeds the new version UL requirement
Testing every two hours updates the protection status
Auto adapts and shifts to more frequent testing if potential problem is detected
| Parameter | TS15/20 | TST15/20 | WTST15/20 | TST15L/20L |
| Amperage | 15A/20A | 15A/20A | 15A/20A | 15A/20A |
| Voltage | 125V AC | 125V AC | 125V AC | 125V AC |
| UL/CUL Listed | ● | ● | ● | ● |
| NEMA | 5-15R/5-20R | 5-15R/5-20R | 5-15R/5-20R | 5-15R/5-20R |
| Tamper-Resistant | / | ● | ● | ● |
| Weather-Resistant | / | / | ● | / |
| Applicable Standards | UL943 Fifth Edition/UL498/UL1998 | |||
| Trip Level | 4~6mA ≤0.025s | |||
| Grounding | Self-Grounding Cooper Clip Opitional | |||
| Face Material | PC | PC | PC | PC |
| Body Material | PC+Copper | PC+Copper | PC+Copper | PC+Copper |
| Operating Temperature | -35℃ to +66℃ | |||
| Flammability | Rated V-2 per UL943 | |||
| Warranty | 2 Years | |||
| Color | White/Ivory/Almond/Black/Brown or Customized | |||
